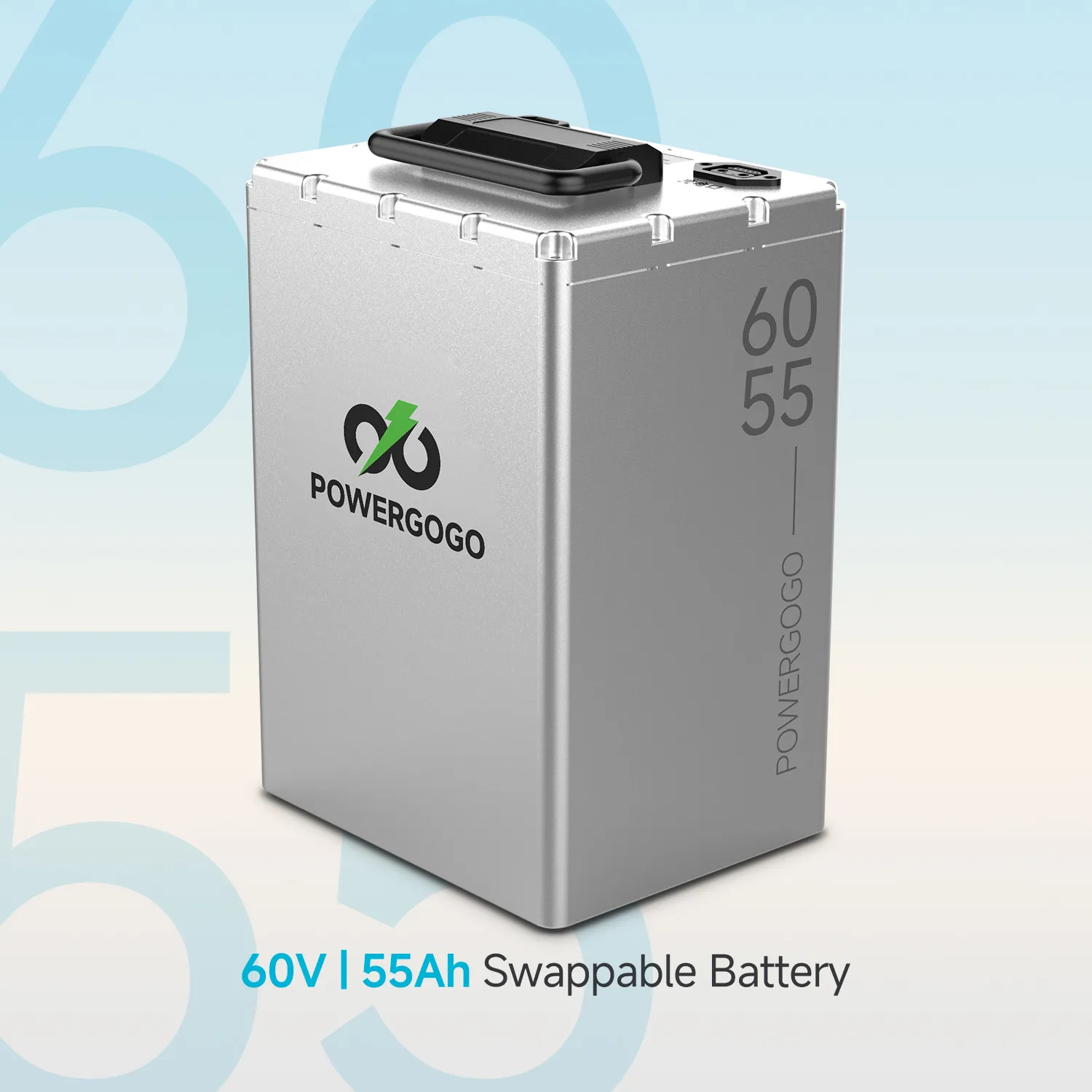

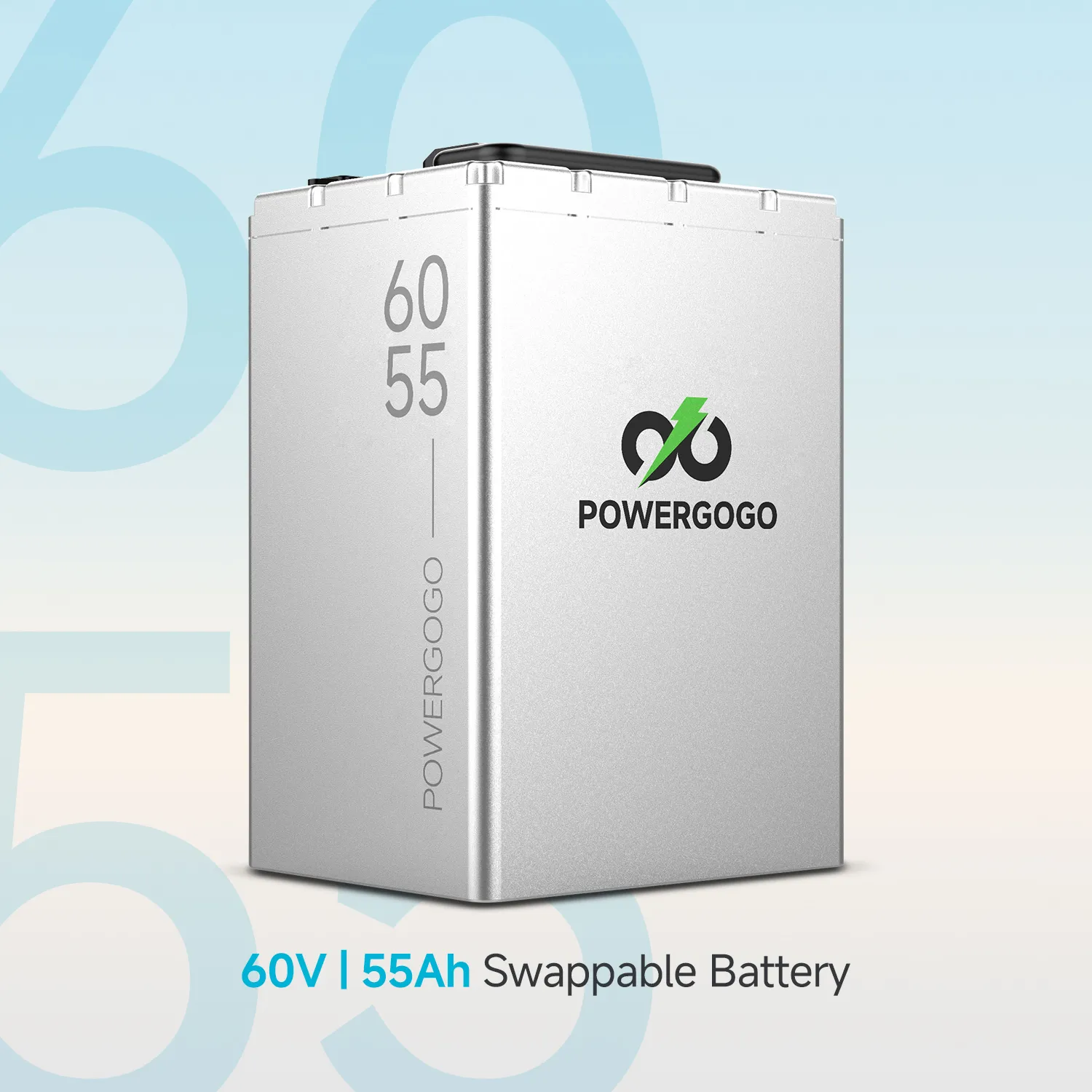

60V55Ah LiFePO4 Swappable Battery For Electric Motorcycle

Rated Voltage :60V

Rated Capacity :55Ah

Energy :3.33KWh

Size : 212×170×340mm

Weight :20 Kg


Details

Specification

No. Item Parameter Remark
1 Nominal Voltage 63.41V
2 Nominal Capacity 55.5Ah
3 Standard charging current  18A
4 Maximum charging current  30A
5 Charge cut-off voltage  72.25V Battery : 4.25 V
6 Standard discharge current  50A
7 Maximum continuous current  55 A
8 Discharge cut-off voltage  51V Battery cells: 3 V ;
9 Charging temperature 0~55 ℃
10 Discharge temperature -30~55 ℃
11 Working humidity 15%~90%RH
12 Battery weight ≤ 20kg
13 Dimension 212×170×340m
14 Normal temperature cycle life  1500 times

standard charge and discharge @25℃&100% DOD, to 80% of rated capacity,

(Single cell charge and discharge range 2.75V-4.3V)

FEATURES & Options

High Discharge Rate: Performance Under Load: Capable of high-rate discharges, ensuring sufficient power for acceleration, uphill climbs, and heavy-load operations.



Rapid Swapping Design: Minimizing Downtime: Enables users to replace batteries in seconds, eliminating charging wait times.



Compatibility and Standardization: Standardized interfaces and sizes ensure compatibility with a wide range of electric vehicle models, including scooters, three-wheelers, and small logistics vehicles.



Smart Features and Data Management: Provides real-time monitoring of battery health, charge levels, and temperature via mobile apps or cloud platforms.
