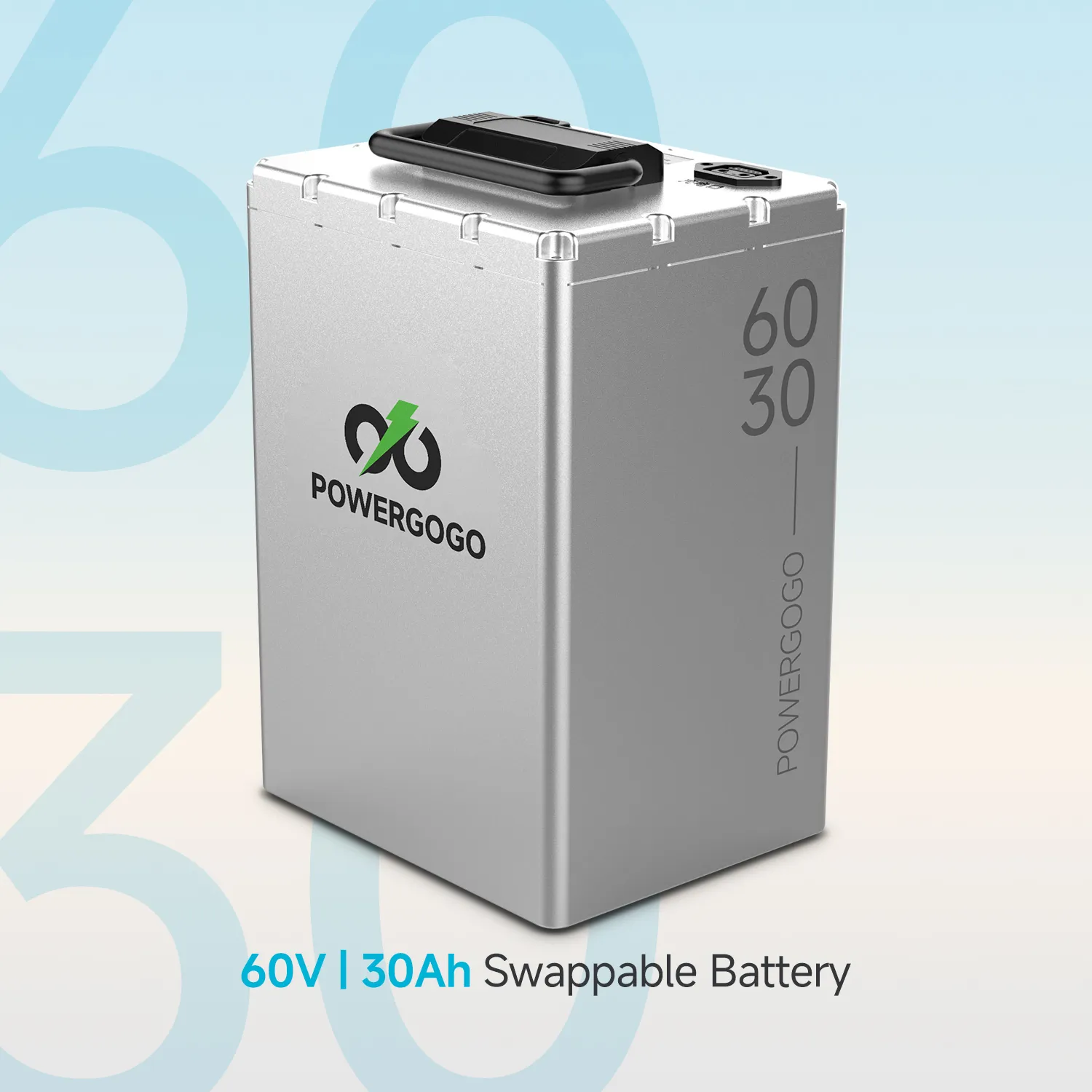

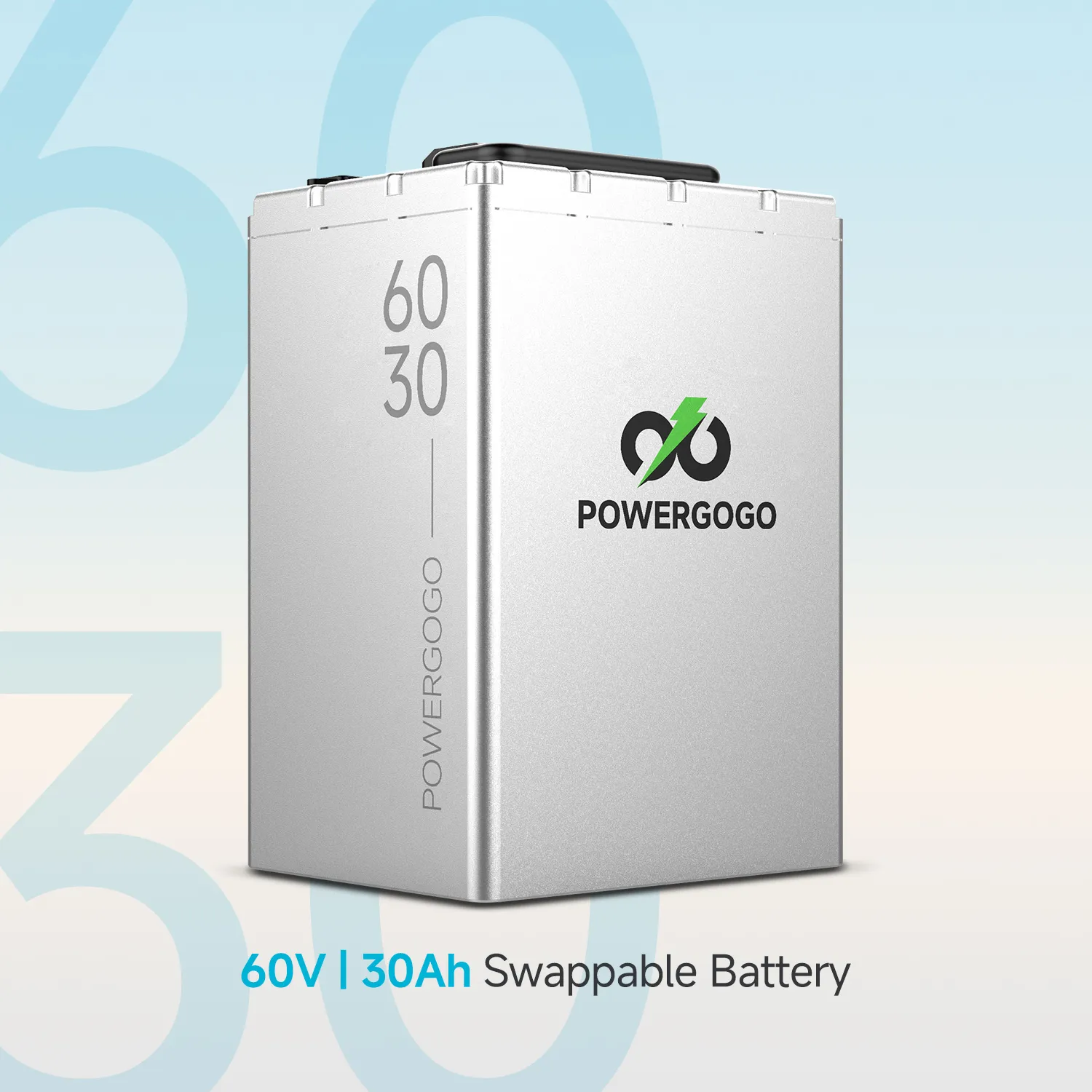

60V30Ah Lithium Battery For Electric Tricycle

Rated Voltage :60V

Rated Capacity :30Ah

Energy :1.8KWh

Size : 212×170×340mm

Weight :16 Kg

CONTACT NOW

Details

No. numer	Item	Parameter	Remark
1	Nominal voltage	64V
2	Nominal capacity	30Ah
3	Standard charging current	15A (0.5C)
4	Maximum charging current	15 A
5	Charge cut-off voltage	7 3 V	Battery: 3.65 V
6	Standard discharge current	30A (1.0 C)
7	Maximum discharge current	60A (2.0C)
8	Discharge cut-off voltage	50 V	Battery: 2.5 V
9	Charging temperature	0~55 ℃
10	Discharge temperature	-20~60 ℃
11	Working humidity	≤ 85% RH
12	Battery weight	≤ 16 kg
13	Dimension	2 12 × 1 70 × 340 mm
14	IP Level	IP67
13	Normal temperature cycle life	2000 times	The cycle life test should be carried out at 25±2 ℃ and 90±5 kPa preload conditions according to the following steps, standard charge and discharge , capacity retention (SOH) = 80%

High Energy Capacity

Swappable Design:Modular and portable, enabling quick battery replacement within seconds.

Advanced Battery Management System (BMS)

Durable and Lightweight Build：aluminum shell for durability and reduced weight.

IP67 protection level,suitable for all-weather use

Scalability for Various Uses:Works seamlessly with different electric scooter models thanks to standardized connectors and dimensions.
