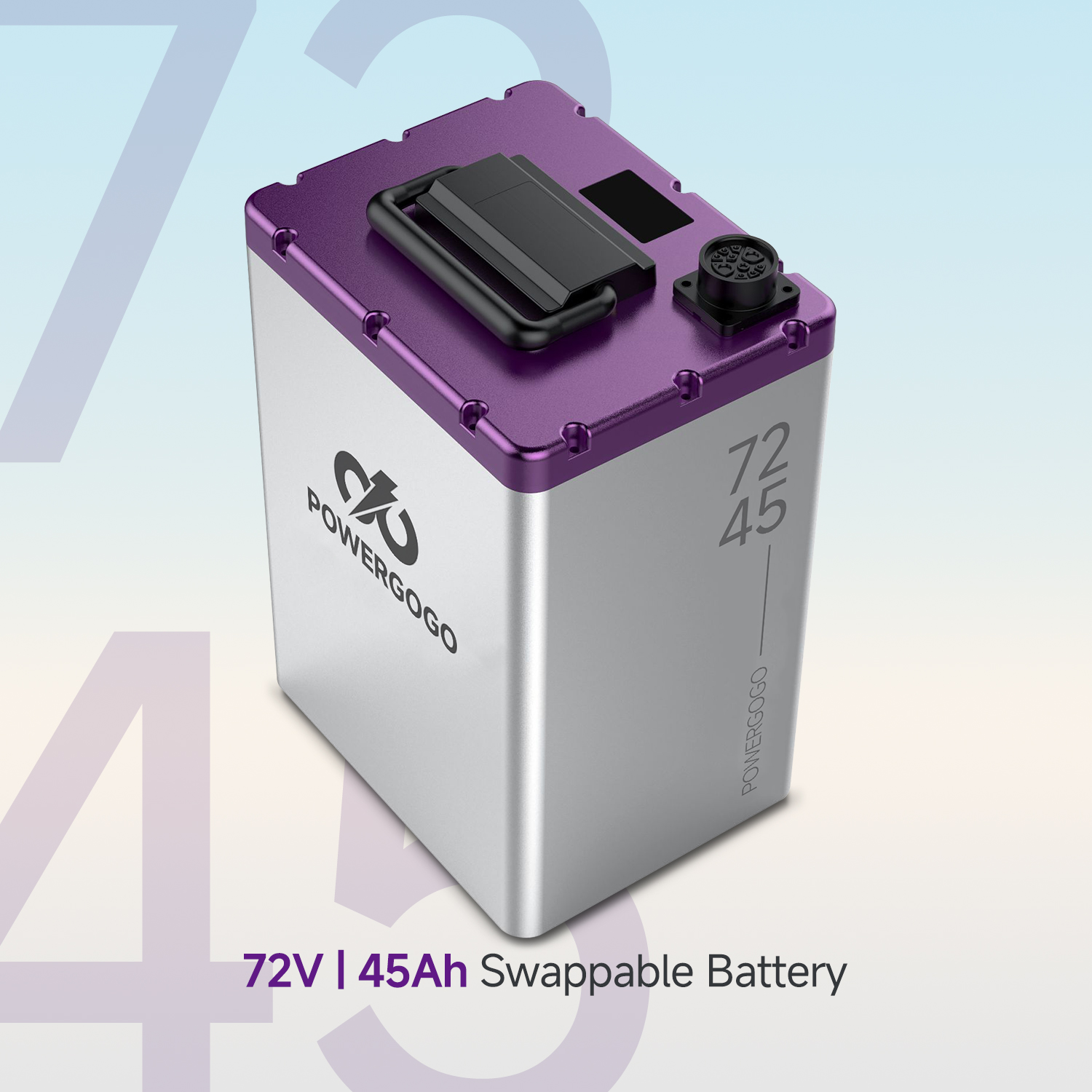

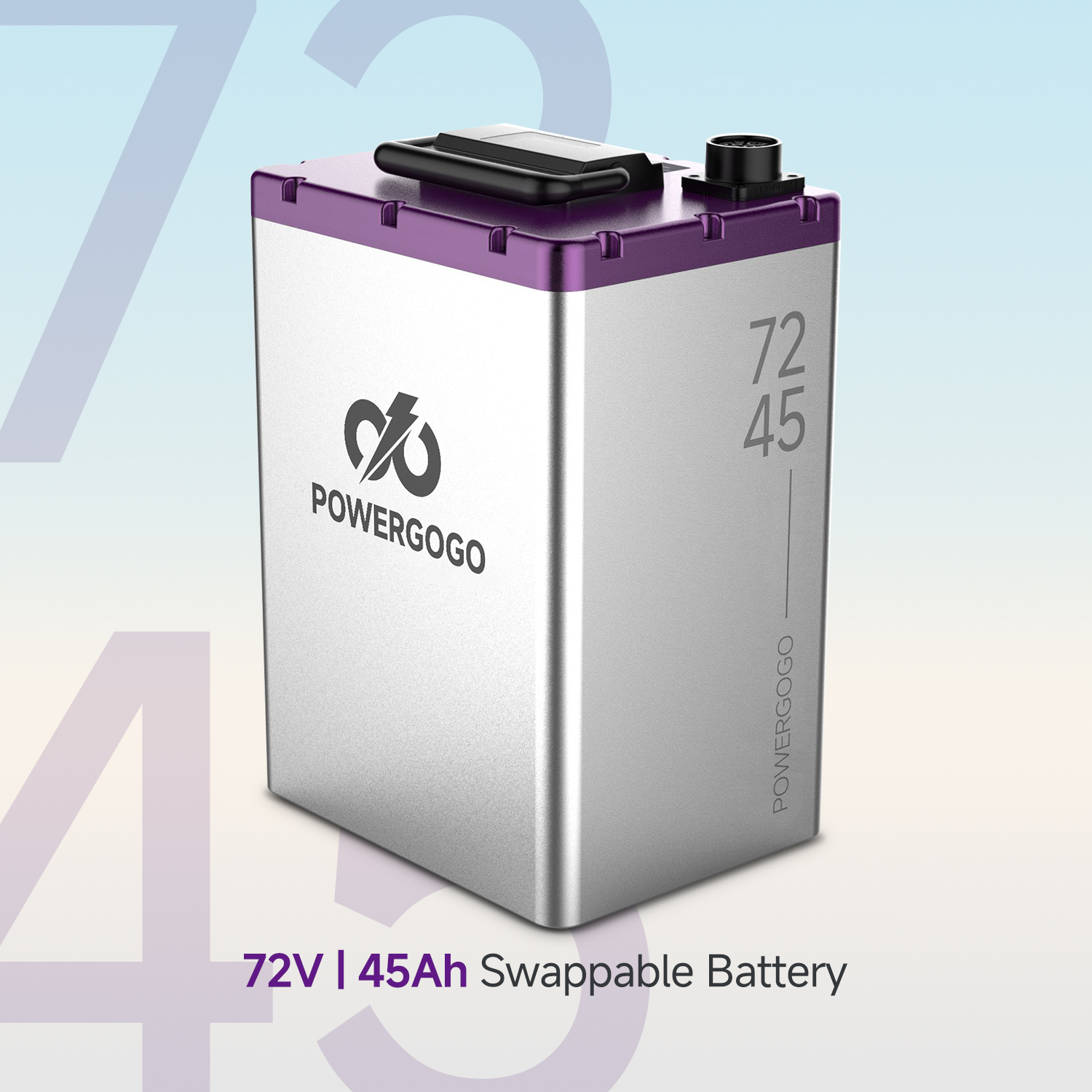

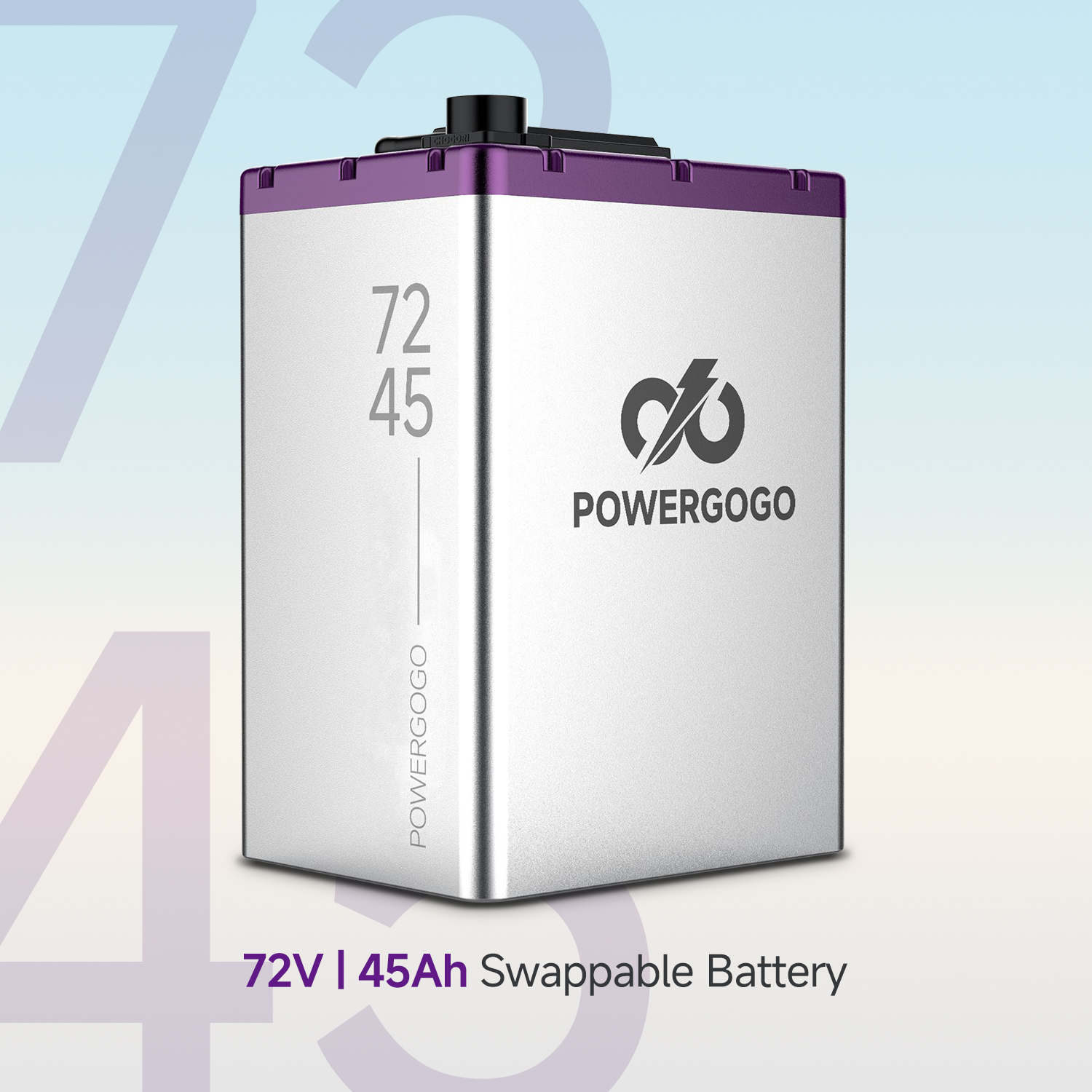

3.24KWh 72V Motorcycle Battery 45Ah Swappable battery with 3C high Rate discharge

Rated Voltage :76.8V

Rated Capacity :45Ah

Energy : 3.45Kwh

Size : 260×185×340mm

Weight :22Kg

CONTACT NOW

Details

Specification

NO.	Item	Parameter	Remark
1	Nominal Voltage	76.8V
2	Nominal Capacity	45Ah
3	Max continuous charge current	45A
4	Charge cut-off voltage	87.6V	Cell：3.65 V
5	Max continuous discharge current	100A	Max peak discharge current:150A，30S
6	Discharge cut-off voltage	60V	Cell：2.5 V；
7	Charge temperature	0~55℃
8	Discharge temperature	-20~55℃
9	Working humidity	15%~90%RH
10	Weight	Around 28kg
11	Lifespan	2000 cycles	25℃ standard charge and discharge cycle to 80% capacity, 100% DOD
12	Size	260×185×340mm

Features

Automotive-Grade Longevity: 2,000+ long-life cycles and stable output guaranteed.
High-Rate Power: Supports 2–3C continuous discharge for strong acceleration and consistent high-load delivery.
High-Efficiency Thermal Design: Cu–Al laser-welded busbars ensure low resistance and excellent thermal management.
Intelligent & Connected: Built-in 4G/GPS for real-time monitoring and fleet management.
Ultimate Safety: Advanced 12-Tier BMS protection against all major risks (voltage, current, temp, etc.).
Rugged Durability: Al-Mg die-cast casing and IP67 rating guarantee performance in the harshest environments.
